S700 to S700 Pro: 48V 25Ah Battery Upgrade, Range & Maintenance Guide

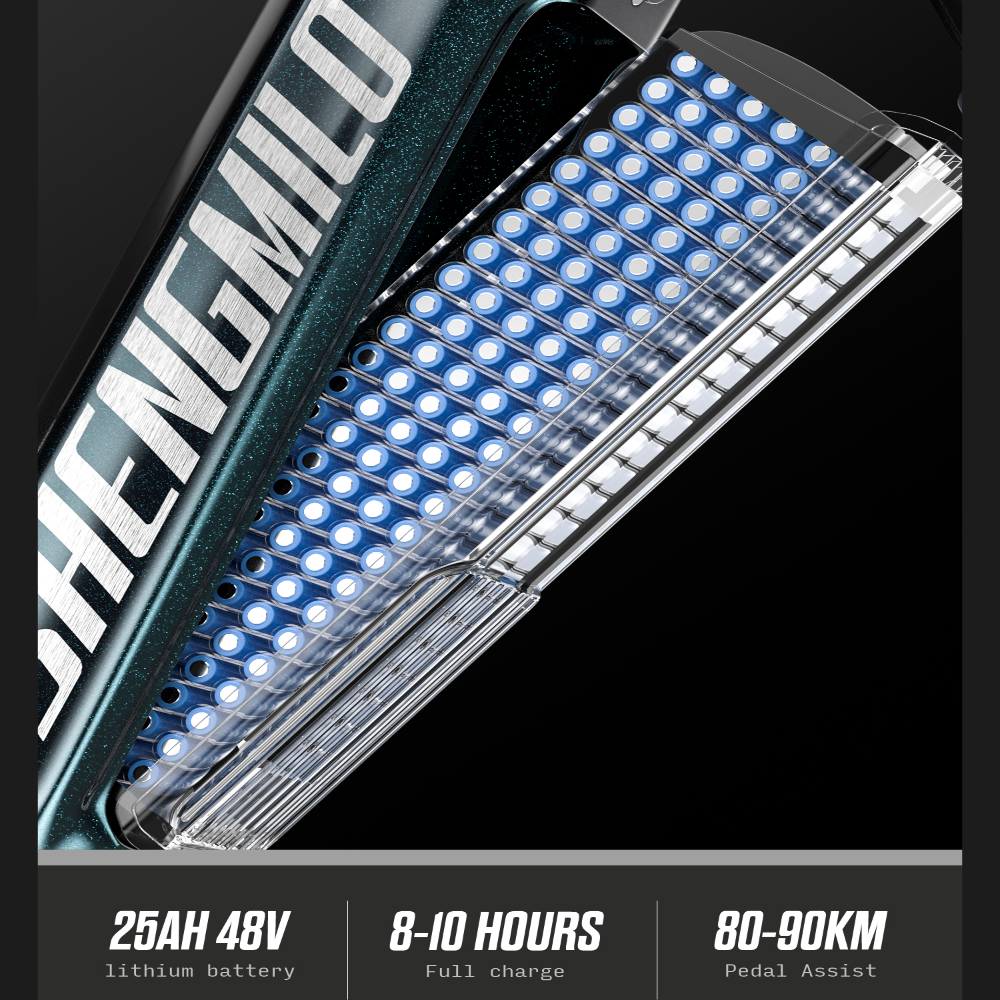

The Shengmilo S700 Pro brings an important upgrade to one of the most important components of an electric bike: the battery. Compared with the previous S700 configuration, the S700 Pro has moved from a 48V 17.5Ah battery to a 48V 25Ah battery, giving riders a significantly larger energy reserve and greater flexibility for longer rides.

From S700 to S700 Pro: A Bigger Battery, More Energy

The battery upgrade is one of the key changes from the S700 to the S700 Pro. The previous S700 used a 48V 17.5Ah battery, while the S700 Pro is equipped with a 48V 25Ah battery.

Feature	Shengmilo S700	Shengmilo S700 Pro
Battery Voltage	48V	48V
Battery Capacity	17.5Ah	25Ah
Approx. Energy Capacity	840Wh	1,200Wh
Capacity Increase	—	Approx. +43%
Best For	Daily riding & shorter trips	Longer rides & extended adventures
Charging Frequency	More frequent	Less frequent under similar conditions

The voltage remains at 48V, but the increase from 17.5Ah to 25Ah means the S700 Pro can store considerably more energy. For riders, this translates into a larger energy reserve that can be especially useful for longer commutes, weekend trips, hillier routes, and outdoor riding.

It is important to understand that a larger battery does not mean the actual riding range will increase by exactly the same percentage in every situation. Real-world range depends on riding speed, rider weight, terrain, temperature, tire pressure, wind, riding mode, and how much motor power is used. However, when other conditions are similar, the 25Ah battery gives the S700 Pro a clear energy-capacity advantage over the previous 17.5Ah configuration.

What Does the Larger Battery Mean for Your Ride?

For everyday riders, the biggest benefit is simple: more available energy means more flexibility.

With the previous 48V 17.5Ah battery, riders had to pay closer attention to battery consumption on longer journeys. The S700 Pro's 48V 25Ah battery provides a larger reserve, making it more suitable for riders who regularly travel longer distances or use higher levels of electric assistance.

The larger battery can also be useful when riding in demanding conditions. Hills, strong headwinds, rough terrain, frequent acceleration, and heavier loads all increase energy consumption. Having additional battery capacity gives the S700 Pro more energy available for these conditions.

For riders who mainly travel short distances, the upgrade may simply mean fewer charging sessions. For riders who regularly take longer trips, the additional capacity can make a much more noticeable difference.

How to Get the Most Range from Your S700 Pro

A larger battery gives you more energy, but your riding habits determine how efficiently that energy is used. If you want to maximize the range of your S700 Pro, focus on the following areas.

Use the Appropriate Assistance Level

Avoid using maximum motor assistance continuously when it is not necessary.

On flat roads, a lower assistance level can often provide enough support while consuming less battery power. Higher assistance levels are more useful for steep climbs, difficult terrain, strong headwinds, or situations where you need additional motor support.

For longer rides, using the appropriate assistance level rather than maximum power at all times is one of the simplest ways to extend range.

Maintain a Steady Riding Speed

Repeated hard acceleration consumes more energy than smooth, consistent riding.

When road conditions allow, accelerate progressively and maintain a steady speed. Avoid repeatedly accelerating aggressively and then braking immediately afterward.

A smoother riding style helps reduce unnecessary energy consumption while also reducing stress on the motor, drivetrain, and brakes.

Keep Your Tires Properly Inflated

Tire pressure has a direct effect on rolling resistance.

If your tires are significantly underinflated, the motor needs to work harder to maintain speed, which can reduce range.

Before longer rides, check the pressure of your CST 26×3.0-inch tires and keep them within the manufacturer's recommended range. Do not automatically use the maximum pressure printed on the tire; choose an appropriate pressure based on the manufacturer's recommendation, rider weight, and riding conditions.

Use Motor Power Wisely on Hills

Hills are one of the biggest sources of battery consumption.

When approaching a climb, use an appropriate assistance level and maintain a steady pace. Pedaling together with the motor can reduce the amount of work required from the electrical system.

Avoid unnecessary full-power acceleration on long climbs. If the route is steep or demanding, expect greater energy consumption even with the larger 25Ah battery.

Avoid Unnecessary Weight

The heavier the total load, the more energy the motor needs to move the bike.

When preparing for a long ride, carry only what you actually need. Rider weight, luggage, accessories, and other additional loads can all affect real-world range.

Pay Attention to Temperature

Battery performance can be affected by extreme temperatures.

Avoid storing or charging the battery in excessively hot environments, near heaters, or in direct sunlight. Extremely cold conditions can also temporarily reduce battery performance.

For everyday storage, keep the battery in a cool, dry and well-ventilated environment and follow the temperature recommendations in the S700 Pro owner's manual.

How to Properly Maintain Your S700 Pro Battery

The 48V 25Ah battery is one of the most important and valuable components of the S700 Pro, so proper maintenance is essential.

Use the Correct Charger

Always use the original charger or a charger specifically approved for the S700 Pro.

Do not use a charger simply because its connector appears to fit. An incompatible charger can cause charging problems and may damage the battery or electrical system.

Before charging, inspect the charger, charging port, and connector for visible damage, moisture, or contamination.

Keep the Battery Dry

Water and electrical connectors do not mix.

After riding in rain or wet conditions, allow the bike and battery connections to dry properly before charging. Keep the charging port clean and dry, and avoid directing high-pressure water at the battery, charging port, motor connections, or other electrical components.

Never charge a wet or visibly damaged battery.

Avoid Extreme Heat

Do not leave the battery in direct sunlight for long periods or store it next to a heater or other heat source.

Excessive heat can negatively affect battery performance and long-term battery health.

If the battery becomes unusually hot during use or charging, stop using it and allow it to cool in a safe location. If abnormal heating continues, contact Shengmilo after-sales support.

Avoid Regularly Draining the Battery Completely

For normal daily use, avoid making a habit of completely draining the battery before every charge.

If you are planning a long ride, start with a sufficiently charged battery rather than relying on the last portion of the battery.

If the bike will not be used for an extended period, follow the storage instructions in the owner's manual rather than leaving the battery completely empty for a long time.

Check the Battery and Connections Regularly

Periodically inspect the battery mounting area, charging port, connectors, and cables.

Look for:

• Loose connections

• Damaged cables

• Corrosion

• Water or moisture

• Burn marks

• Unusual odors

• Physical damage to the battery casing

If you notice swelling, cracking, leakage, severe overheating, smoke, or another abnormal condition, stop using and charging the battery immediately and contact Shengmilo after-sales support.

Do not attempt to open or repair the battery yourself.

What If the Battery Is Not Performing Normally?

If you notice that the S700 Pro's range suddenly becomes much shorter than usual, first consider whether the riding conditions have changed.

For example, colder weather, lower tire pressure, higher riding speeds, more frequent hill climbing, heavier loads, or increased use of high-power assistance can all cause the battery to drain faster.

If none of these factors explain the change, check the battery connections and charging process.

If the battery does not charge normally, the display shows an abnormal battery reading, the bike suddenly loses power, or the battery becomes unusually hot, stop using the battery and contact the Shengmilo after-sales team.

When contacting support, provide your order number, bike model, battery information, a description of the problem, and photos or videos if available. If there is an error code on the display, include a clear photo of the code as well.

This information allows the support team to identify the problem more efficiently and determine whether further inspection or a replacement component is required.

S700 vs. S700 Pro: The Battery Upgrade in One Look

The transition from the S700 to the S700 Pro represents a meaningful battery upgrade rather than simply a change in model name. The voltage remains 48V, while the capacity increases from 17.5Ah to 25Ah.

That additional capacity gives the S700 Pro a significantly larger energy reserve, making it better suited to riders who want to spend more time riding and less time looking for a charger.

For riders who prioritize longer-distance riding, outdoor exploration, or frequent use of higher motor assistance, the 48V 25Ah battery is one of the most important advantages of the S700 Pro.

The key is to combine that larger capacity with efficient riding and proper battery care. Maintain the correct tire pressure, use suitable assistance levels, avoid unnecessary full-power riding, charge with the correct charger, protect the battery from extreme temperatures, keep electrical connections dry, and regularly inspect the battery and wiring.

With a larger 1,200Wh energy capacity, sensible riding habits, and proper maintenance, the S700 Pro is designed to give riders greater freedom to plan longer journeys and enjoy more time on the road.
