1x M90 ebike (Includes rear rack, fenders, headlight, alloy pedals etc.)
1x 48V 17AH Removable Battery
1x Free Assembly Tool
1x 2A charger（Default EU plug, British customers need to prepare EU to UK travel adapter）
The M90 is 95% assembled at the factory, you just need to assemble the pedals, handlebars, front wheel, mounting screws for rear rack, and adjust the seat height.
Once you've received your bike, watch this Shengmilo M90 assembly video:
EU warehouses can ship to the following countries：
Great Britain（UK）， Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden.
🚚UK：10~15 business days
🚚EU：5~8 business days
Upgraded 6061 Aluminum
Geared Hub Motor
Long Range Battery
Miles per Charge (estimate)
Gear Shift System
Smart Backlight Display provides the information of speed, mileage, power, pedal assist level etc. The Display Is Equipped With Three Buttons To Control The Electric Mode And Power Assist Mode.

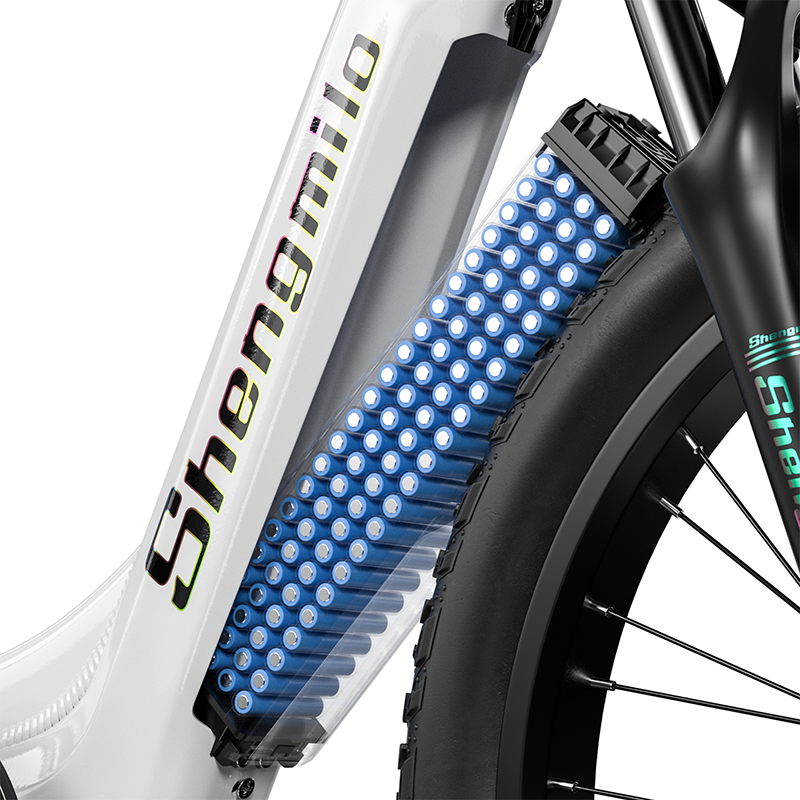

48V 17Ah Long cruise Lithium-ion Battery
The battery is one of the most important components of an electric bike. Shengmilo M90 is equipped with a Lithium-ion 48V 17Ah battery to ensure a long life span and high performance. The bike range per charge is over 30~40 miles per charge on pedal-assist mode and around 28 miles on pure electric power mode. The battery will maintain 80% capacity after 1000 charges.
Total Battery Capacity
Single Cell Capacity
Time Until Fully Charge
Upgraded 6061 aluminum frame and easy-to-remove battery design
Shengmilo uses high-strength 6061 lightweight aluminum for the frame, giving the bike unmatched durability. The easily removable battery is convenient for mobile charging, even if you are at home, at a hotel, or at school, you can remove the battery to charge.

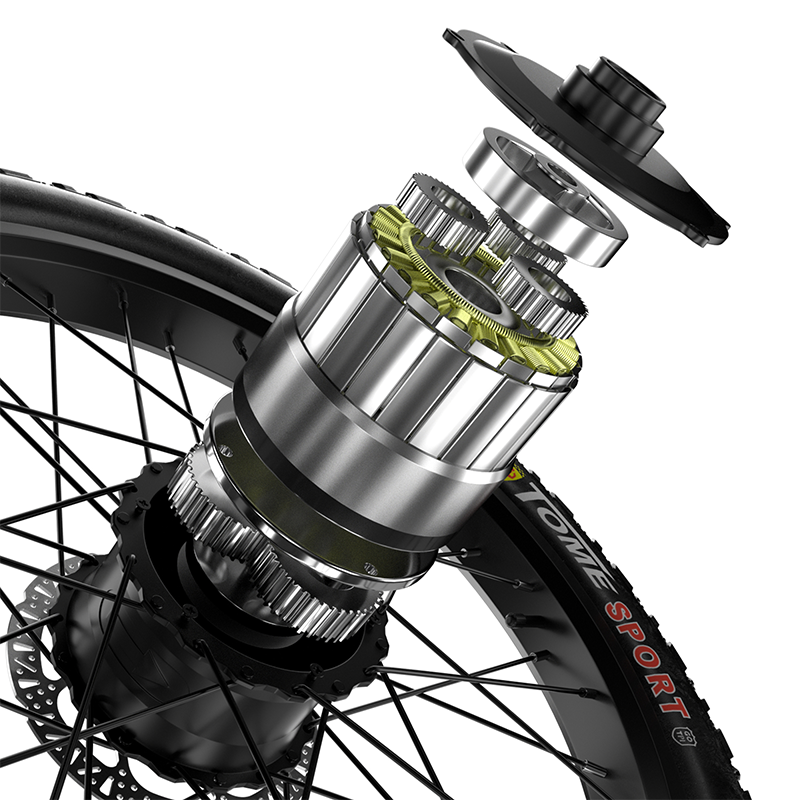

500W Upgraded Brushless Geared Hub Motor
The M90’s motor uses an updated and specialized inner ring, which enables high-temperature resistance and better heat dissipation. This inner ring reduces the motor magnets’ attenuation speed, which guarantees longer life expectancy for the motor, meaning your Shengmilo M90 will outlast the competition where it matters most—the power system. M90’s brushless geared hub motor will help you conquer any obstacle in your chosen terrain.
Max Motor Torque
29"×2.25" CST CABALLERD tiresThe M90 features CST CABALLERD tires for excellent ride and abrasion resistance that reduce bumps on bumpy roads and improve ride comfort.
SHIMANO 7 SPEED GEAR SHIFT SYSTEMThe Shimano 7 speed gear shift system offers you more choice while riding in a variety of conditions. Along with the pedal-assist system, you can find the speed that suits your journey. Using this system accurately can increase the range of a single charge by up to 15%.
48V LUMINOSITY SPOTLIGHTThe Shengmilo independent R&D luminosity spotlight is 20% brighter than LED light. Visibility is improved to guarantee your safety while riding at night.
SELLE ROYAL SADDLEThe Selle Royal Saddle features a comfortable design specially made for pressure relief.
REAR RACKShengmilo MX90’s rear rack can easily carry goods with all sizes and shapes. The maximum load of the rear seat frame is 150KG (330 pounds)
Dual hydraulic brakesThe front and rear wheels of the M90 are equipped with hydraulic brakes that provide ample stopping power even in the harshest conditions.
SMART WATERPROOF LCD DISPALYM90 is equipped with an M5 smart display, which shows the total mileage, Battery level, speed, and 1~5 speed level display. The display is equipped with three buttons to control the throttle mode and power assist mode.
HALF TWIST THROTTLEThe Half-twist throttle helps prevent accidental activation, protecting you from inadvertent injuries.
FRONT FORK: COIL SUSPENSIONThe durable Shengmilo suspension fork has preloaded adjustments for the spring’s stiffness and a lock-out lever. With 80mm of available compression, it will be the perfect fit for your chosen terrain.
TAIWAN HAO MENG ALUMINUM ALLOY CRANKSETThe crankset is made of aluminum alloy with CNC technology, is hardness and sevice life are stronger than high carbon discs, and it is equipped with PROWHEEL cranks for smoother pedaling and less effort.
handlebars with smart buttonsThere are three buttons on the left handlebar of the M90 electric bicycle, which are Shift up, down shift and Boot.
48V 17AH lithium batteryTwo charging methods: 1. Directly charge on the M90 electric bicycle; 2. Take out the lithium battery and place it in a safe place to charge.
- Battery 48V 17Ah lithium battery
- Range 35–50miles
- Hub Motor 500W brushless gear motor
- Total Payload Capacity 400 lbs
- Recommended Rider Heights5′3″ ~ 6′4″ （165cm~200cm）
- Charger 48V 2.0 A smart charger
- Controller Sine wave controller
- Display 3.5 inch water proof LCD display
- Weight 61.7 lb （28KG）.
- Pedal Assist Intelligent 0~5 level pedal assist
- Tires 29″ x 2.25″ CST CABALLERD tires
- Brake lever Aluminum alloy comfort grip levers with motor cutoff switch
- Freewheel Shimano 7 speed gear shift system
- BrakeDual hydraulic disc brakes
- Chain KMC chain
- Stem Promax MA-400 SSABK
- Crank 170mm forged alloy
- Gearing Shimano- 14-28T BROWN/BK
- Front Fork Alloy front suspension fork with lockout and adjustment
- Throttle Half twist throttle
- Pedal Alloy pedal with reflectors
- Bike Frame 6061 Aluminum frame
- Front Light 48V LED light
- Saddle SR saddle
- Seat Post 30.9 x 300 mm Alloy Seatpost
- Kickstand Heavy-duty aluminum
- Wheels Spoke wheels
Dimensions of SHENGMILO M90
- A – Total Length 74in
- B – Handlebar Height 42in
- C – Wheelbase 45in
- D – Minimum Seat Height 32in
- E – Maximum Seat Height 38in
- F – Chain Stay Length 19in
- G – Standover Height 14in
- H– Wheel Diameter 29in
- I – Head Tube Length 10in
- J – Handlebar Length 27in
